Short Answer
Installing a control valve requires proper alignment, correct flow direction, and adequate support to ensure safe and reliable operation in a piping system.
Explanation
Control valves are essential components in industrial plants used to regulate flow, pressure, temperature, and other process variables. Proper installation is critical to ensure accurate control and long-term reliability.
During installation, engineers and technicians must verify the valve orientation, piping alignment, and accessibility for maintenance. Incorrect installation can lead to vibration, leakage, or improper valve operation.
Control valves are usually installed in process piping systems connected to actuators and control systems.

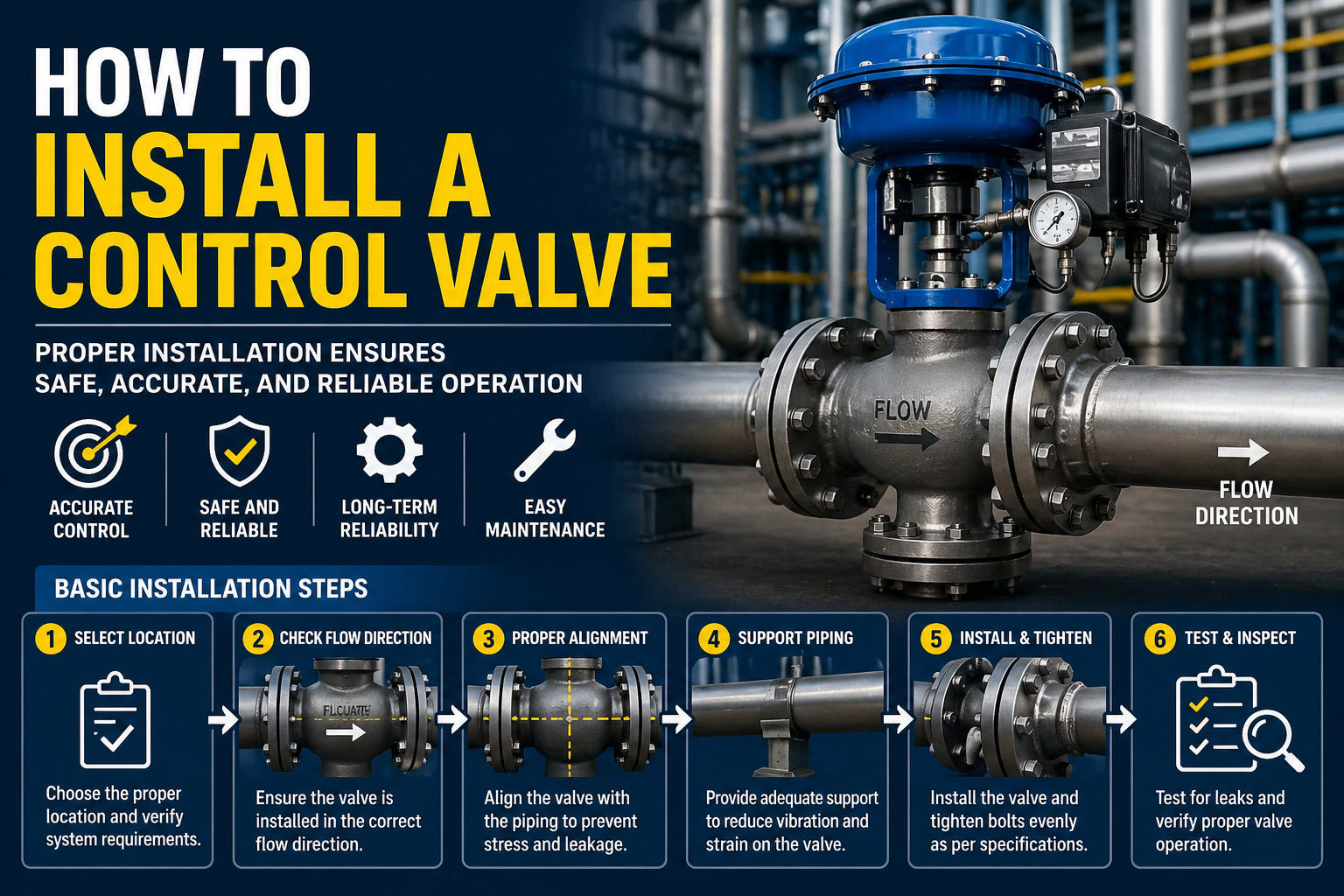

Basic Installation Steps
Typical control valve installation procedures include:
- Verify the valve specifications and tag number
- Check the flow direction indicated on the valve body
- Ensure the piping is properly aligned
- Install the valve between flanges using appropriate gaskets and bolts
- Tighten bolts evenly to avoid flange distortion
- Confirm actuator clearance and accessibility
These steps help ensure proper valve operation and reduce installation problems.
Engineering Practice
In plant engineering projects, additional considerations are often required when installing control valves:
- Installing strainers upstream to protect the valve
- Providing adequate support for heavy valves
- Allowing sufficient space for maintenance and removal
- Avoiding excessive vibration from pumps or compressors
Proper installation improves reliability and reduces maintenance issues during plant operation.
Summary
Proper control valve installation is essential for stable process control and safe plant operation. By ensuring correct flow direction, piping alignment, and adequate support, engineers can maintain reliable performance of control valves in industrial systems.
